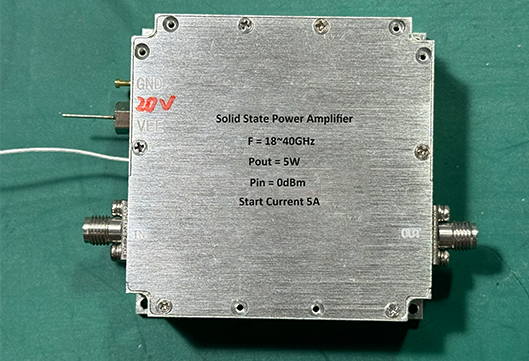

18~40GHz Solid State Power Amplifier 5W
Characteristic:
n Ultra wideband
n low noise
n Miniaturization
n high reliability
n Extensive environmental adaptability
Application:
n Radio and television system
n Radio system
n Radar system
n communication system
n Test system
n Photoelectric conversion system
Electrical Specifications (TA = 25℃)
Ltem | Min | Typical | Max | Unit |
Frequency Range | 18 |
| 40 | GHz |
Gain |
| 40 |
| db |
Gain Flatness |
| ±3.5 |
| dB |
Output Power (Psat) |
| 37 |
| dBm |
Noise Figure |
| 10 |
| dB |
Spurious |
| -50 |
| dBc |
Input VSWR |
| 1.8 |
| Ratio |
Output VSWR |
| 2.5 |
| Ratio |
Operating DC Voltage |
| 20 |
| Volt |
Operating DC Current |
| 4.5 | Start 12A | A |
Environmental Specifications
Ltem | Min | Typical | Max | Unit |
Maximum Power |
| -10 | 0 | dBm |
Operation Temperature | -20 |
| 40 | ℃ |
Storage Temperature | -40 |
| 85 | ℃ |
Relative Humidity |
| 95 |
| % |
Applicable height |
| 8000 |
| foot |
Impact and vibration |
| / |
|
Mechanic Specification
Dimension | 60×60×20 | Max | mm |
Weight | 0.4 | Max | Kg |
Input Interface | 2.92 Female |
|
|
Output Interface | 2.92 Female |
|
|
Resistance | 50 |
| ohms |
Note: the module shall be equipped with a radiator, and the area shall not be less than twice the volume of the module | |||
Overall dimension (unit: mm tolerance ± 0.3mm)
