Directional coupler is a passive port reciprocal four-port device, one of which is isolated from the input port.Ideally, all four ports are perfectly matched and the circuit is loss-free.Directional couplers can be implemented in a variety of ways, such as microstrip lines, strip lines, coaxial and waveguides, etc. They are used to sample the input and output signals (this application is called a reflectometer, which is an important part of a network analyzer.
Part Number: KDC20-18-40G-2.92F
Parameter | Minimum | Typical | Maximum | Units |
Frequency range | 18 | - | 40 | GHz |
Nominal Coupling |
| 20 |
| dB |
Coupling Accuracy | - | - | ±1.0 | dB |
Coupling Sensitivity to Frequency | - | - | ±0.6 | dB |
Insertion Loss | - | - | 1.2 | dB |
Directivity | 10 |
|
| dB |
VSWR | - |
| 1.6 | - |
Power Handling |
|
| 20 | W cw |
Operating Temperature Range | -40 | - | 85 | ˚C |
Impedance | - | 50 | - | Ω |

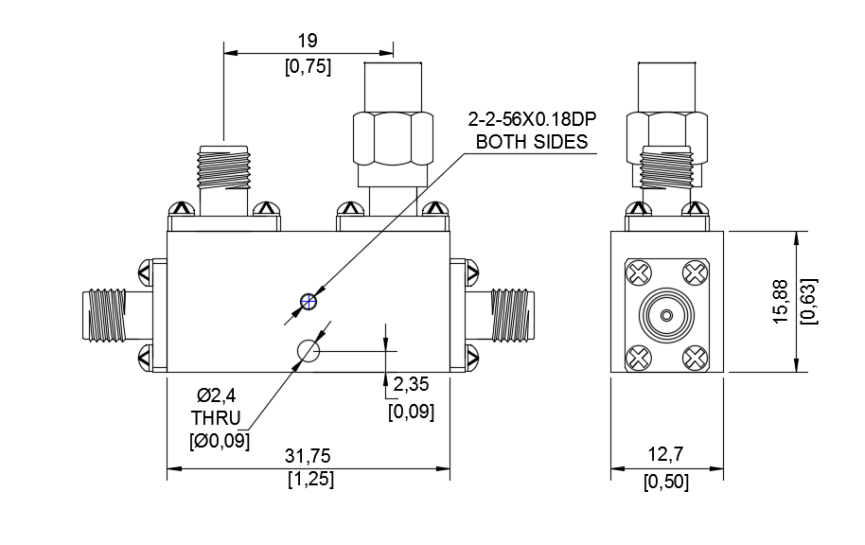

Outline Drawing:
All Dimensions in mm
All Connectors: 2.92-Female
